Popis
1FRAME SIZE : 16' x205MM #6061 COLOR AS PER ARTWORK
2FORKALLOY FORK #6061,16',STRAIGHT FORK W/TAPER COLOR AS PER ARTWORK
3HEAD PARTHEAD PART,FEIMIN,HB-TH432B-BS/ISO-C,25.4x30x27MM,H:25.8MM,SEMI CARTRIDGE,1' THREADLESS,CAGED BALL BEARING,W/ STAR NUT,11PCS,ST,ED BLACK
- SPACERSSPACER FOR HEAD PART,1'(25.4MM)x10MM,AL,SAND BLASTED ANODIZED BLACK

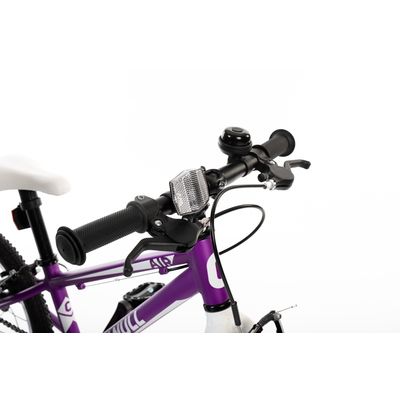

4HANDLE BARHANDLE BAR,HL-CROP,MTB-AL-110BT/ISO-C, ALLOY DOUBLE BUTTED, L:420MM x0(R) MMx6(D) BACK SWEEP, 25.4MM BARBORE,SAND BLASTED ANODIZED BLACK (SABK)
5BELLBELL,FY-036A,40MM,AL,TOP BLACK/BASE BLACK,W/BOLT M4x20MM ( FOR LEFT HAND )
6GRIPGRIP,VLG-902-1,100MM,KRATON,BLACK
7STEMSTEM,DINGZHUO,DZ-ST-01/ISO-C,ID:25.4MMxEXT:40x15degx40H,ALLOY SAND BLASTED ANODIZED BLACK (SABK), 2-BOLT AHEAD STEM,BARBORE,25.4ID,W/NI-ZN BK HARDWARES ,W/O LOGO *** ALLOY CAP (SABK), ***
8B.B.PARTB.B.PART,THUN,SHORTY; 114K/113; 68; - M8x1x18;Allen; Fe/Zn 7 IV; lock; cover ring; black – 1701415

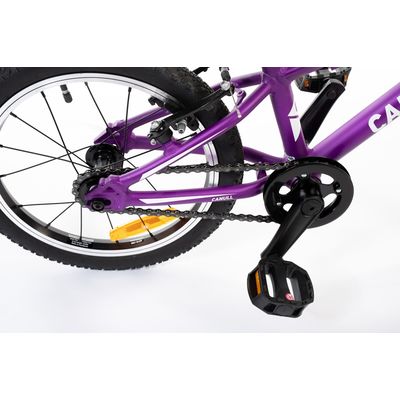

9CHAIN WHEELCRANK SET,SAC13-111P1P,25Tx1/2'x3/32'x92MM,ST,CHAINRING ED BLACK W/CRANK ALLOY SANDBLAST ANODIZED BLACK,W/DOUBLE CHAINGUARD PVC BLACK (Riveted type) ,W/O B.B.SET
10PEDALPEDAL,FP-650,93x87MMx9/16',PP,BLACK,W/BALL,W/REFLECTOR CPSC,BS,TPL,DIN
11CHAINCHAIN,MEILE,X-410,1/2'x1/8',ST,BLACK,1 ROLL
12FREE WHEEL/SPROCKETFREEWHEEL,TRI DIAMOND,FW-316BED,1/2*3/32*16T,ST, ED BLACK

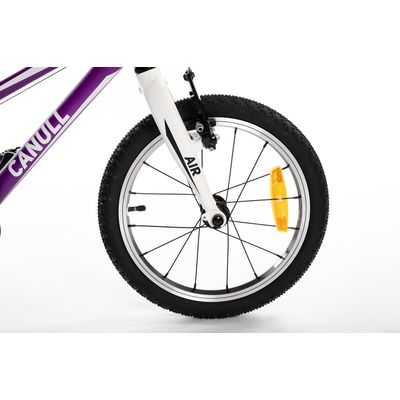

13FRONT HUBFRONT HUB,ZHONGYE,WR-662F,M9x14Gx16Hx85x95MM,ALLOY ANODIZED BLACK, | LOOSE BALL BEARING,W/O LOGO,W/NICKEL-ZINC ELETRICAL BLACK ANTI-RUST
14REAR HUB/COASTER BRAKEREAR HUB,ZHONGYE,WR-662R,M10x14Gx16Hx110x124MM,ALLOY ANODIZED BLACK, |ANTI-RUST M6 BOLT AND BOLT WASHER (PASS 72HRS SALT-SPRAY TEST)
15SPOKES FRONTSPOKE,ZHONGYE,14Gx149MM,ST,ED BLACK
- SPOKES REARSPOKE,ZHONGYE,14Gx149MM,ST,ED BLACK
17NIPPLESNIPPLE,14Gx12MM,DACROTIZED AR STEEL
18RIM F/RRIM ALLOY,LA-08,16'x2950MM,AL,BLACK,(6061-T6),26.4x16.5x1.8t W/WEAR INDICATOR,W/MARKING ( 16H W/CNC AV )
- RIM TAPERIM TAPE,WI-16,16'x20MM,NYLON,BLACK,HOLE FOR AV VALVE 9.0 MM
- STICKER FOR RIMSTICKER FOR RIM LA-08,ETRTO W/SAFETY,305x20C,AL6061,16'x1.5'-1.95',, FOR 28H(PS-LA-1168 STICKER RIM 16 LA08(28H)
STICKER FOR RIM AV VALVE,FOR 16”LIGHT WEIGHT,SKC,WHITE (GLOSSY AC-YS-701), (PS-CNA16-16415-STICKER RIM)
- JOINT PINJOINT PIN,39x4.35MM(16'-18'-20'),ST,UCP,SCREW PIN TYPE
19TIRESTIRE,INNOVA,IB-3010,16'1.5 (40-305),WIRE BEAD,60TPI, 60PSI,BLACK , REACH STANDARD
20TUBESTUBE,INNOVA,A/V,16x1.5, AV VALVE WITH 35MM, LOW LEAD( LESS THAN 100ppm
21FRONT BRAKEV-BRAKE/F,PROMAX-TX-107C,101MM,AL,BLACK,W/BRAKE SHOE 55MM, W/STAINLESS PIPE,90-DEG,W/RUBBER GATOR SOFT, W/SCREW ST/DACRO,FOR ISO STANDARD
- FRONT POWER ADJUSTERPOWER ADJUSTER,POWER,V-8,FRONT FREE ANGLE,STAINLESS,SILVER
22REAR BRAKEV-BRAKE/R,TX-107C,101MM,AL,BLACK,W/BRAKE SHOE 55MM W/STAINLESS PIPE,135-DEG,W/RUBBER GATOR SOFT, W/SCREW ST/DACRO,FOR CEN STANDARD
23BRAKE LEVER /LBRAKE LEVER/L,ZALUN,ZA-169PV, RESIN BRACKET AND 2-FINGER ARM ALL BLACK SHORT REACH, W/ ALLOY ADJUSTER, W/ DACROTIZED (OR RUSPERT) | ANTI-RUST HARDWARES
24BRAKE LEVER /RBRAKE LVER/R,ZALUN,ZA-169PV, RESIN BRACKET AND 2-FINGER ARM ALL BLACK, SHORT REACH, W/ ALLOY ADJUSTER, W/ DACROTIZED (OR RUSPERT) |ANTI-RUST HARDWARES
25CABLE OUTERCABLE OUTER BRAKE,500M-2P,4.8MMx500M,ST,BLACK,2P,W/O LOGO SUPPLIER **F:260+R:340+-100**
26CABLE INNER (SRING BRAKE) /FSRING FOR BRAKE,7x6x,L:900MM,ST,STAINLESS
27CABLE INNER (SRING BRAKE) /RSRING FOR BRAKE,7x6x,L:1300MM,ST,STAINLESS

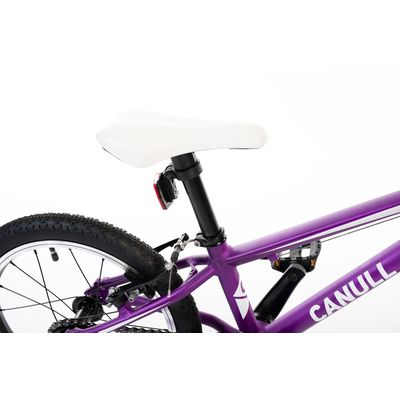

28SADDLESADDLE,DDK,DDK-F1616R,TOP COVER WHITE YS-701 COMBO SEAT,W/ 25.4(OD) x2.4(T)x L:180MM BLACK ALLOY SEAT POST, W/EVA FOAM,,EN71-3 (REACH) STANDARD
29SEAT PIN + CLAMPSEAT CLAMP,PROMAX-MX-27,28.6MM,AL,BLACK,W/ALLEN BOLT STAINLESS W/O LOGO
30REFLECTOR FRONTREFLECTOR,SATE-LITE,121C,PVC,WHITE,FRONT,W/BS,CPSC,AS,JIS,ECE,DIN, W/SCREW STANDARD
31REFLECTOR REARREFLECTOR,SATE-LITE,121R,PVC,RED,REAR,W/BS,CPSC,AS,JIS,ECE,DIN, W/SCREW
